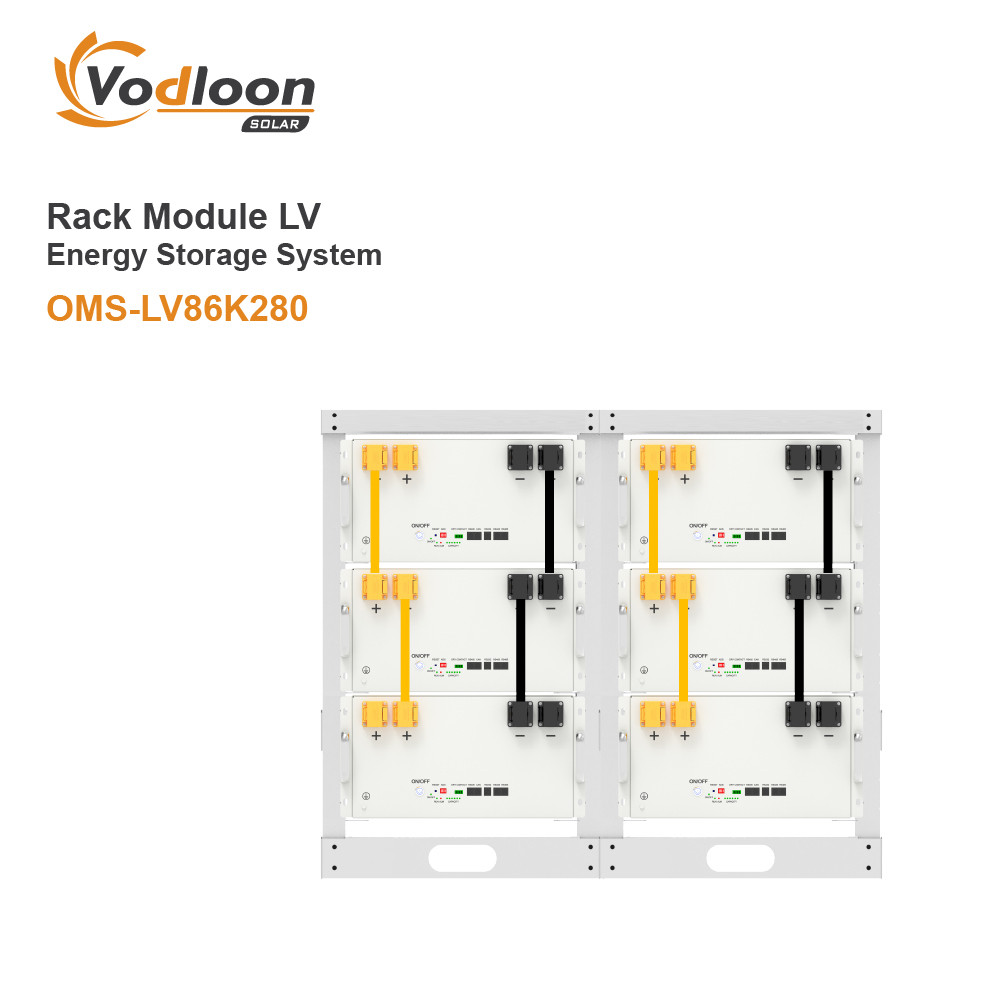

OMS-86K280 Rack Module Low voltage ess
Detail Information
OMS-86K280 Rack Module Low voltage ess
OMS-86K280 Rack Module Low voltage ess
Battery modules: 51.2V 280Ah
Standard voltage: 51.2V
Cycle Life: >6000 cycles
Battery Parameters
MODEL | OMS-86K |
Model | 51.2V280AH*6 |
Nominal Voltage | 51.2V |
Dimension moudle(mm) | 483*790*244*6 |
Dimension RACK(mm) | 600*550*1004 |
Weight(kg) | 810 |
SPECIFICATIONS | PARAMETER |
Nominal Voltage(v) | 51.2 |
Nominal Capacity(KWH) | 86.016 |
Discharge Cut-Off Voltage(V) | 40 |
Charge Cut-Off Voltage(V) | 56.8 |
Recoend Charge/Discharge Current(A) | 450 |
Max.Charge/Discharge Current(A) | 500 |
Counication | RS485/RS232/CAN |
Working Temperature | 0℃~50℃ Charge -10℃~50℃ Disharge |
Transport or Storage Temperature Range | -20℃~60℃ |
Certification | CE/IEC/UL/UN38.3/MSDS |
Design Life | 15years+ |
Cycle Life | (0.5C/0.5C-80%DOD)>6000 times |
Series Function | Support 16 units in Series |
Certification | UN38.3/MSDS/ROHS |
Application Area
※ Energy storage system, control system, alarm system, power system, database
※ Emergency lighting system, emergency power supply, UPS
※ Telecommunications, communication, and fire protection
