OMS-14K280 Rack Module Low voltage ess

Share
Categories	Lithium Battery
Brand	Vodloon Solar Energy Storage System Manufacturer
Model	OMS-14K280
Standard	51.2V280AH
Nominal Voltage	51.2V
Nominal Capacity(KWH)	14.336
Working Temperature	0℃~50℃ Charge -10℃~50℃ Disharge
Transport or Storage Temperature Range	-20℃~60℃
Certification	CE/IEC/UL/UN38.3/MSDS

Detail Information

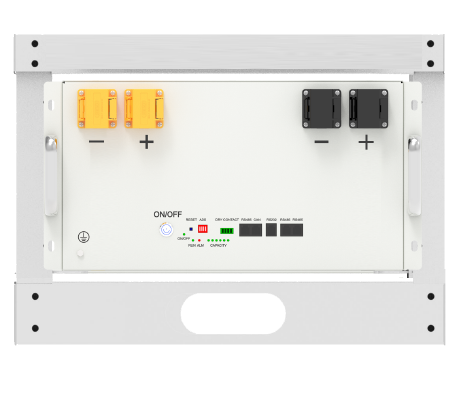

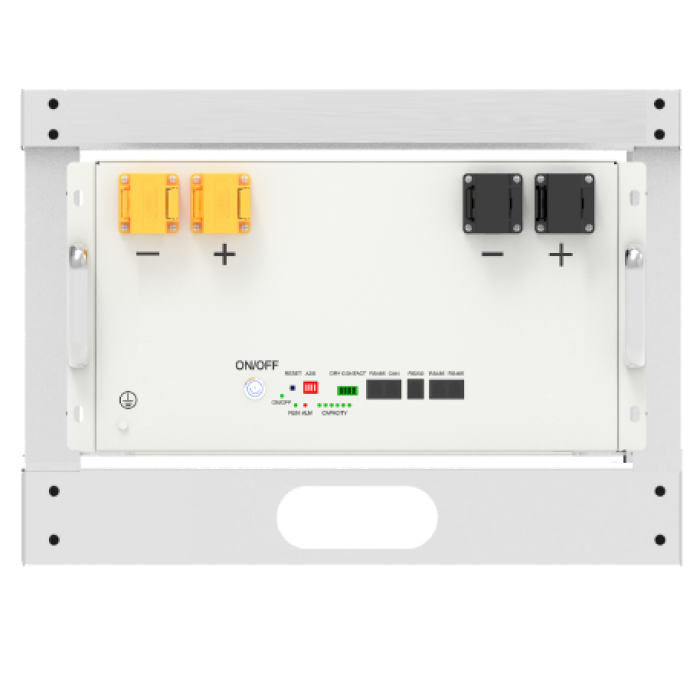

OMS-14K280 Rack Module Low voltage ess

Battery modules: 51.2V 280Ah

Standard voltage: 51.2V

Cycle Life: >6000 cycles

Battery Parameters

MODEL	OMS-14K
Model	51.2V280AH
Nominal Voltage	51.2V
Dimension moudle(mm)	483790244
Dimension RACK(mm)	600550133
Weight(kg)	135
SPECIFICATIONS	PARAMETER
Nominal Voltage(v)	51.2
Nominal Capacity(KWH)	14.336
Discharge Cut-Off Voltage(V)	40
Charge Cut-Off Voltage(V)	56.8
Recoend Charge/Discharge Current(A)	100
Max.Charge/Discharge Current(A)	140
Counication	RS485/RS232/CAN
Working Temperature	0℃~50℃ Charge -10℃~50℃ Disharge
Transport or Storage Temperature Range	-20℃~60℃
Certification	CE/IEC/UL/UN38.3/MSDS
Design Life	15years+
Cycle Life	(0.5C/0.5C-80%DOD)>6000 times
Series Function	Support 16 units in Series
Certification	UN38.3/MSDS/ROHS
