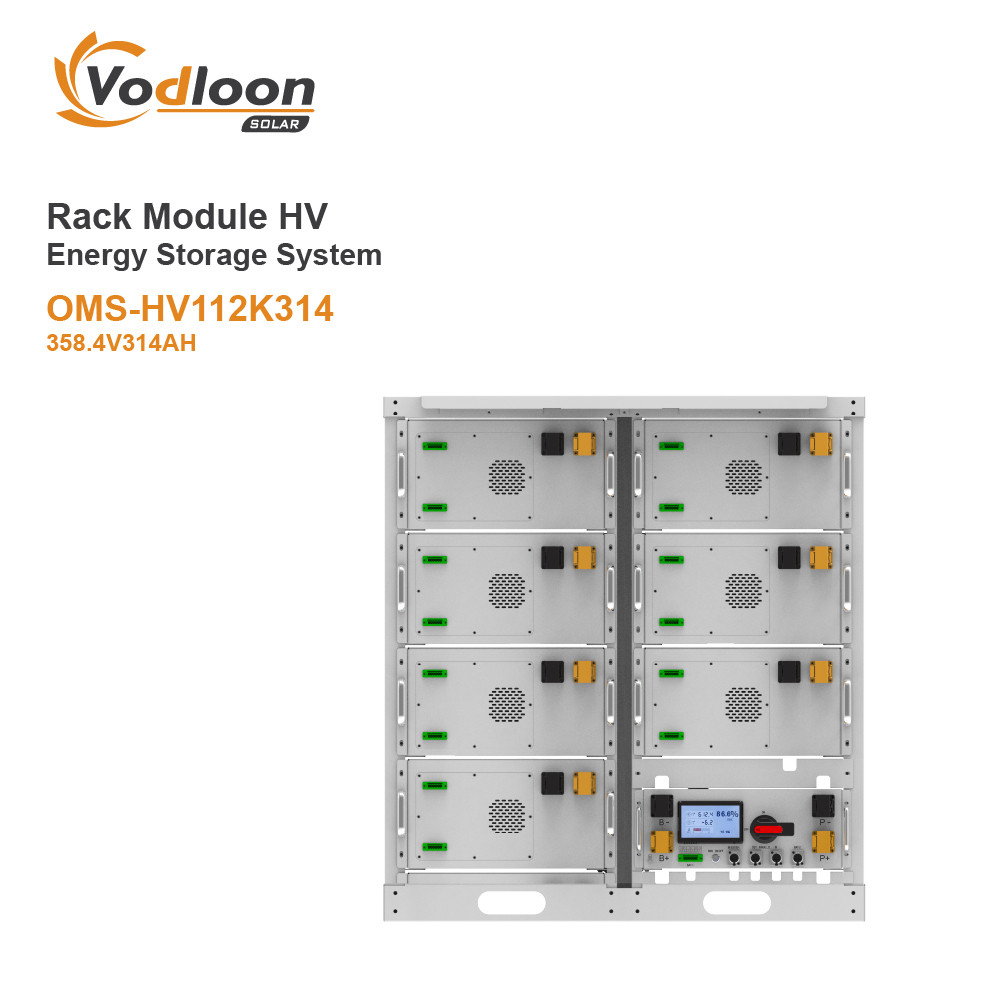

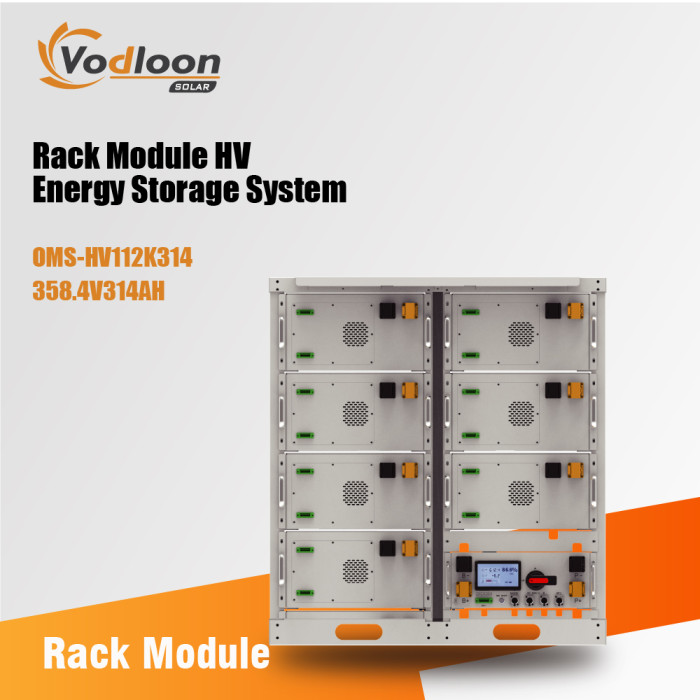

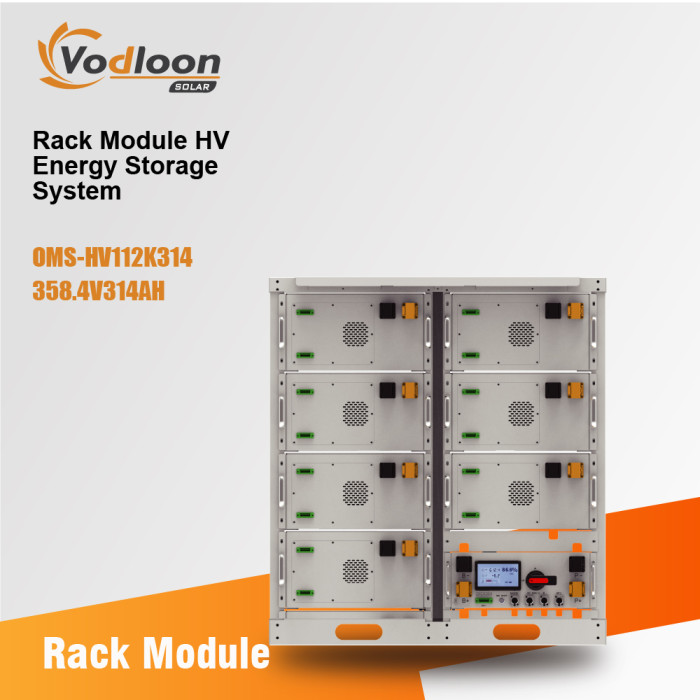

OMS-HV112K314 ENERGY STORAGE BESS 307.2V314AH

Share
Categories	Lithium Battery
Brand	Vodloon Solar Energy Storage System Manufacturer
Model	OMS-HV112K314
产品规格Model	358.4V314AH
额定电压Nominal Voltage	358.4V
额定电量Nominal Capacity(KWH)	112.5
工作温度 Working Temperature	0℃~50℃ Charge -10℃~50℃ Disharge
存储及运输温度Transport or Storage Temperature Range	-20℃~60℃
产品认证 Certification	CE/IEC/UL/UN38.3/MSDS

Detail Information

OMS-HV112K314 ENERGY STORAGE BESS 307.2V314AH

OMS-HV112K314

Number of battery modules:358.4V314AH

Standard voltage: 358.4V

Cycle Life: >6000 cycles

Battery Parameters

MODEL	OMS-HV112K314
Model	358.4V314AH
Nominal Voltage	358.4V
Nominal Capacity	314
Dimension moudle(mm)	483245792*7
Dimension RACK(mm)	5507801190
Weight(kg)	912
S P E C I F I C A T I O N S	PARAMETER
Nominal Capacity(KWH)	112.5
Discharge Cut-Off Voltage(V)	308
Charge Cut-Off Voltage(V)	397.6
Recoend Charge/Discharge Current(A)	100
Max.Charge/Discharge Current(A)	160
Counication	RS485/RS232/CAN
Working Temperature	0℃~50℃ Charge -10℃~50℃ Disharge
Transport or Storage Temperature Range	-20℃~60℃
Certification	CE/IEC/UL/UN38.3/MSDS
Design Life	15years+
Cycle Life	(0.5C/0.5C-80%DOD)>6000 times
Series Function	Support 16 units in Series
Certification	UN38.3/MSDS/ROHS
