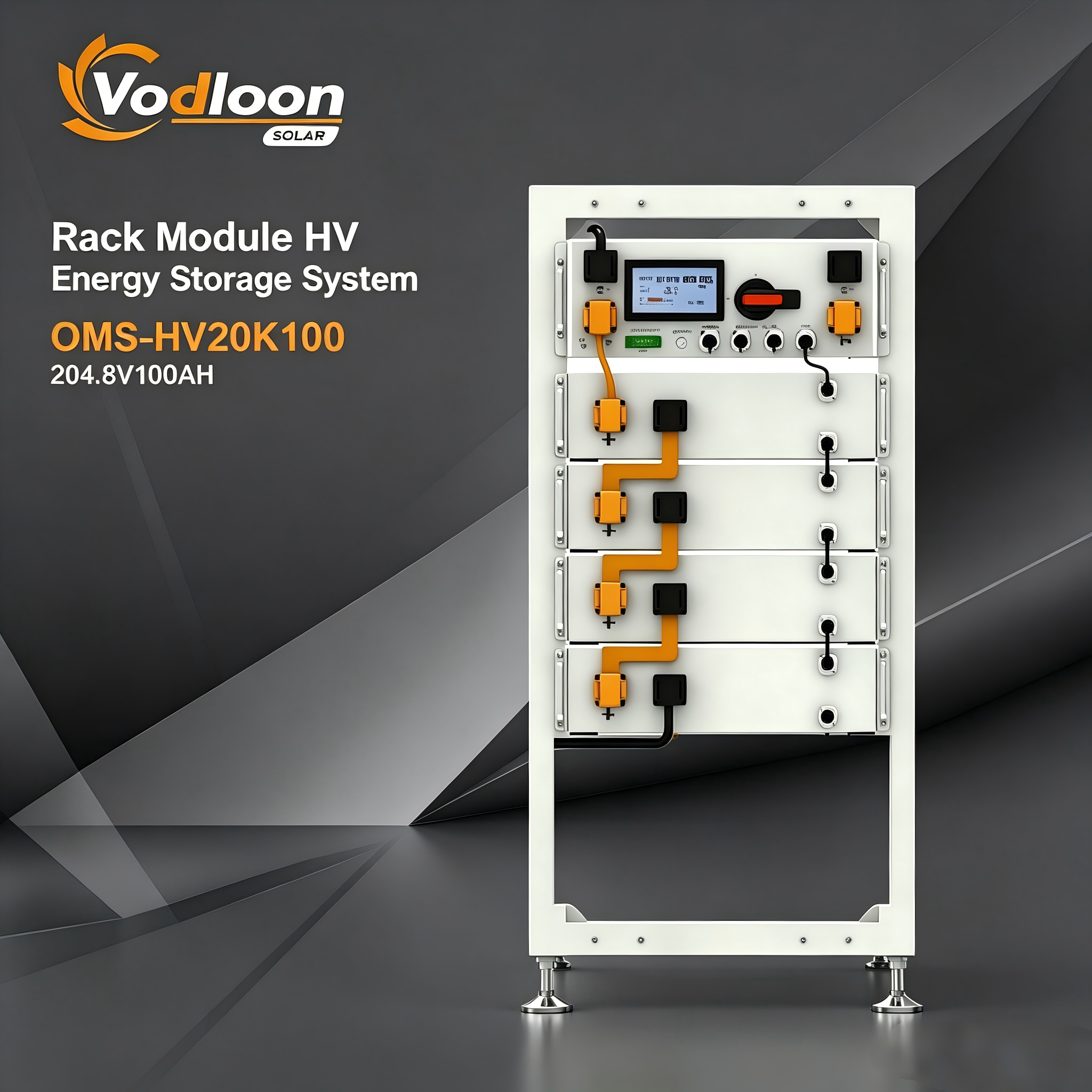

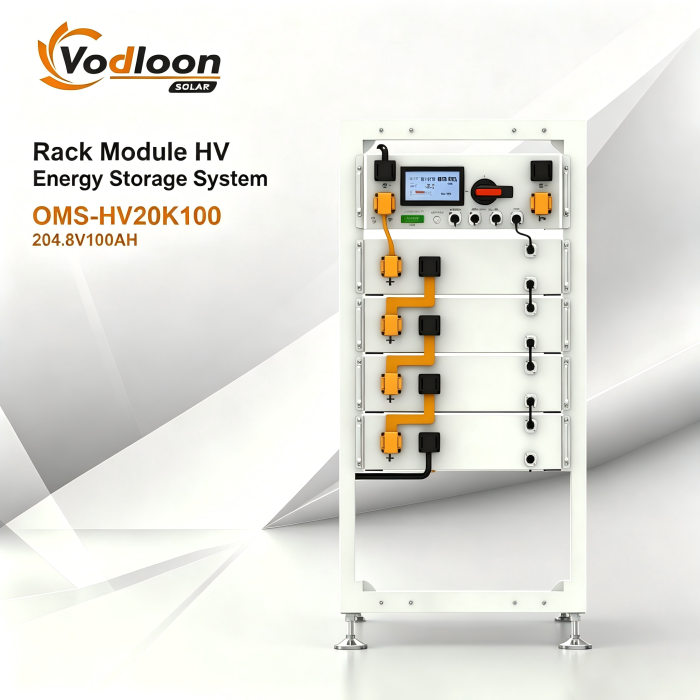

OMS-HV20K100 Rack storage lithium battery 204.8V100AH

Share
Categories	Lithium Battery
Brand	Vodloon Solar Energy Storage System Manufacturer
Model	OMS-HV20K100
产品规格Model	204.8V100AH
额定电压Nominal Voltage	204.8V
额定电量Nominal Capacity(KWH)	20.48
工作温度 Working Temperature	0℃~50℃ Charge -10℃~50℃ Disharge
存储及运输温度Transport or Storage Temperature Range	-20℃~60℃
产品认证 Certification	CE/IEC/UL/UN38.3/MSDS

Detail Information

OMS-HV20K100 Rack storage lithium battery 51.2V100Ah

OMS-HV20K100

Number of battery modules:204.8V 100Ah

Standard voltage: 204.8V

Cycle Life: >6000 cycles

Battery Parameters

型号MODEL	OMS-HV20K100
产品规格Model	204.8V100AH
额定电压Nominal Voltage	204.8V
模组尺寸Dimension moudle(mm)	440442133*4
整机尺寸Dimension RACK(mm)	5605101210
整机重量Weight(kg)	240
规格 S P E C I F I C A T I O N S	PARAMETER
额定电量Nominal Capacity(KWH)	20.48
放电截止电压Discharge Cut-Off Voltage(V)	176
充电截止电压Charge Cut-Off Voltage(V)	227.6
推荐工作电流Recoend Charge/Discharge Current(A)	60
最大工作电流Max.Charge/Discharge Current(A)	100
通讯方式 Counication	RS485/RS232/CAN
工作温度 Working Temperature	0℃~50℃ Charge -10℃~50℃ Disharge
存储及运输温度Transport or Storage Temperature Range	-20℃~60℃
产品认证 Certification	CE/IEC/UL/UN38.3/MSDS
设计寿命 Design Life	15years+
产品循环寿命Cycle Life	(0.5C/0.5C-80%DOD)>6000 times
串联组数 Series Function	Support 16 units in Series
证书Certification	UN38.3/MSDS/ROHS
