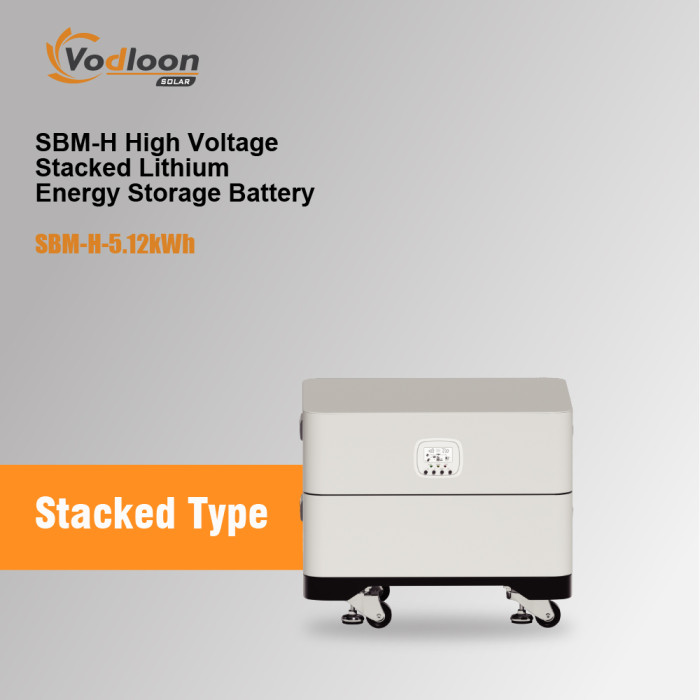

SBM-H 102.4V/50AH High Voltage Stacked Lithium Battery With Hybrid Inverter 5.5KW/10KW
| Share | |
|---|---|
| Categories | Lithium Battery |
| Trademark/Brand | Vodloon Solar Energy Storage System Manufacturer |
| Model | SBM-H |
| Suggested DOD | 80% |
| Cycle Life | >6000 cycles |
| IP Rating | IP21(IP65 optional) |
| Discharge Operating Temperature | -20°C-60℃ |
| Charging Operating Temperature | 0℃-45℃ |
| Maximum Parallel | 15PCS |
| Communication | RS232/CAN/RS485(WIFI/BT optional) |
| Warranty | 5 Years |
| Certificate | UN38.3/MSDS/CE/ROHS/FCC |
| Update Time | Feb 4,2026 |
Detail Information
SBM-H High Voltage Stacked Lithium Battery
SBM-H High Voltage Stacked Lithium Battery
Inverter output: 5.5kW/8kW/10kW
Number of battery modules:102.4V 50Ah
Standard voltage: 102.4V
Cycle Life: >6000 cycles
Battery Parameters
Model | SBM-H-10.24kWh | SBM-H-15.36kWh | SBM-H-20.48kWh | SBM-H-25.6kWh | SBM-H-30.72kWh |
Standard voltage | 102.4V | 102.4V | 102.4V | 102.4V | 102.4V |
Number of modules | 1 +2/PCS | 1 +3/PCS | 1 +4/PCS | 1 +5/PCS | 1 +6/PCS |
Single module
capacity | 50Ah | 50Ah | 50Ah | 50Ah | 50Ah |
Rated capacity | 5.12kWh*2 | 5.12kWh*3 | 5.12kWh*4 | 5.12kWh*5 | 5.12kWh*6 |
Working voltage | 172.8-230.4V | 259.2-348.8V | 345.6-464V | 432-579.2V | 518.4-694.4V |
Standard charging
current | 25A/module | 25A/module | 25A/module | 25A/module | 25A/module |
Standard
discharging current | 50A/module | 50A/module | 50A/module | 50A/module | 50A/module |
Suggested DOD | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
Cycle life | >6000 cycles | >6000 cycles | >6000 cycles | >6000 cycles | >6000 cycles |
IP Rating | IP21 | IP21 | IP21 | IP21 | IP21 |
Discharge operating
temperature | -20℃-60℃ | -20℃-60℃ | -20℃-60℃ | -20℃-60℃ | -20℃-60℃ |
Charging operating
temperature | 0℃-45℃ | 0℃-45℃ | 0℃-45℃ | 0℃-45℃ | 0℃-45℃ |
Maximum series
connection | 8PCS | 8PCS | 8PCS | 8PCS | 8PCS |
Communication | CAN/RS485(WiFi/Bluetooth optional) | CAN/RS485(WiFi/Bluetooth optional) | CAN/RS485(WiFi/Bluetooth optional) | CAN/RS485(WiFi/Bluetooth optional) | CAN/RS485(WiFi/Bluetooth optional) |
Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
Certificate | UN38.3/MSDS/CE/ROHS/FCC | UN38.3/MSDS/CE/ROHS/FCC | UN38.3/MSDS/CE/ROHS/FCC | UN38.3/MSDS/CE/ROHS/FCC | UN38.3/MSDS/CE/ROHS/FCC |
NW. (kg) | 54*2+14.2(base)
106 (Ultra thin version) | 54*3+14.2(base) | 54*4+14.2(base) | 54*5+14.2(base) | 54*6+14.2(base) |
GW.(kg) | 64*2+18.7(base)
124 (Ultra thin version) | 64*3+18.7(base) | 64*4+18.7(base) | 64*5+18.7(base) | 64*6+18.7(base) |
Product size (mm) | 550*500*(178*3+105)
550*210*1470
(Ultra thin version) | 50*500*(178*4+105) | 50*500*(178*5+105) | 50*500*(178*6+105) | 50*500*(178*7+105) |
Package size(mm) | 650*600*290*3
630*580*252(base)
545*510*300*3
(Ultra thin version) | 650*600*290*4
630*580*252(base) | 650*600*290*5
630*580*252(base) | 650*600*290*6
630*580*252(base) | 650*600*290*7
630*580*252(base) |
Inverter Parameters
Rated power | 5. 5kW | 10kW |
AC input | ||
Voltage | 230VAC | 230VAC |
Optional voltage range | 170-280VAC (personal computer) : 90-280VAC (household appliances) | 170-280VAC (personal computer) : 90-280VAC (household appliances) |
Frequency range | 50Hz/60Hz (adaptive) | 50Hz/60Hz (adaptive) |
AC output | ||
Rated voltage | 230VAC士5% | 230VAC士5% |
Peak power | 11000VA | 20000VA |
Efficiency | max 93. 5% | max 98% |
Transfer time | 10ms (personal computer) 20ms (household appliances) | 10ms (personal computer) 20ms (household appliances) |
Waveform | Pure sine wave | Pure sine wave |
Battery | ||
Battery voltage | 48VDC | 48VDC |
Floating charging voltage | 54VDC (Settable) | 54VDC (Settable) |
Overcharge protection | 57.6VDC (Settable) | 57.6VDC (Settable) |
Solar charging&
AC charging | ||
PV maximum open
circuit voltage | 500VDC | 500VDC |
PV maximum power | 5500W | 11000W |
MPPT range @
working voltage | 120-500VDC | 90-500VDC |
Maximum solar
charging current | 100A | 150A |
Maximum AC
charging current | 60A | 150A |
Maximum
charging current | 100A | 150A |
Basic parameters | ||
Working temperature | -10°C - 50°C | -10°C - 50°C |
Working humidity | 20% -95% relative temperature (non condensing) | 20% -95% relative temperature (non condensing) |
Storage temperature | -15°C - 60°C | -15°C - 60°C |
NW. (kg) | 22.6 | 27 |
GW.(kg) | 36 | 40 |
Product size (mm) | 550*500*178(Regular style)
550*210*470(Ultra thin style) | 550*500*245(Regular style)
550*210*470(Ultra thin style) |
Package size(mm) | 650*600*290 | 650*600*345 |
Product Introduction
The SBM-I Stacked lithium-ion energy storage system uses high cycle lithium iron phosphate cells, and a high-performance BMS protection and management battery system. A single group can be stacked up to 7 layers (including the inverter layer), and multiple groups can be combined into up to 15 battery modules in parallel. The capacity can be freely combined, and when paired with a 5.5KW-10KW off grid photovoltaic inverter system, it can meet various electricity needs of households and industries.
Product Features
1. Grade A LiFePO4 cell
2.Bluetooth and WIFI/touch LCD screen optional
3. 100A BMS for charging/discharging
4. 6000 cycles @ DOD80%
5. LCD display screen
6. Parallel support for 15PCS
Application Area
※ Energy storage system, control system, alarm system, power system, database
※ Emergency lighting system, emergency power supply, UPS
※ Telecommunications, communication, and fire protection
