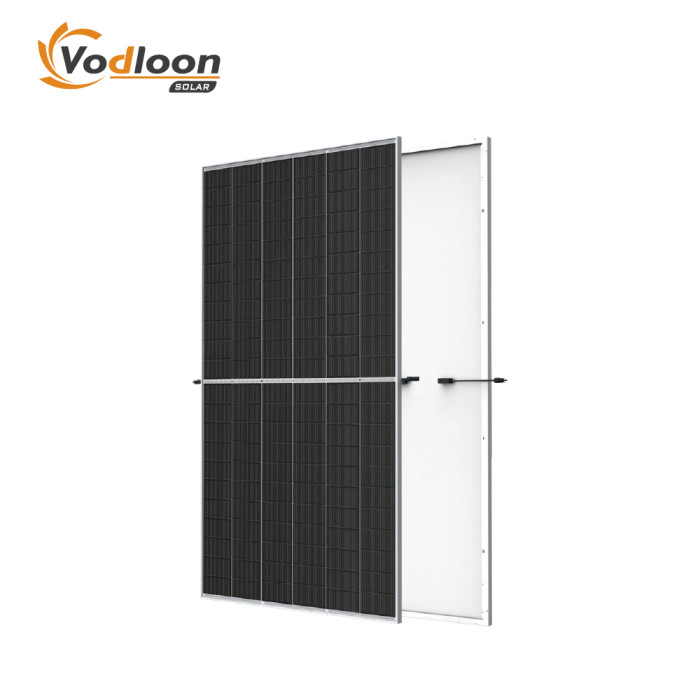

VDL-M21-132 710W 715W 720W 725W N-Type Half-Cell Solar Module Mono Solar Panel
| Share | |
|---|---|
| Categories | Solar Panels |
| Trademark/Brand | Vodloon Solar Energy Storage System Manufacturer |
| Model | VDL-M21-132 710-725W |
| Cell Type [mm] | MonoCells 132 210±1.5x105±1.5mm |
| Dimensions of Module / Weight | 2384x1303x30mm /34.0kg |
| Glass | High Transparency Solar Glass 3.2mm |
| Backsheet | White |
| Frame | Anodized Aluminum Alloy & Custom Color Accepted |
| Cable /Connector | 4.0mm²,300mm /MC4 Compatible |
| Wind/ Snow Load | 2400Pa/5400Pa |
| Certificate | CE, ISO9001, GS, RoHS，IEC, UKCA |
| Update Time | Dec 21,2025 |
Detail Information
VDL-M21-132 710-725W N-Type Half-Cell Module Mono Solar Panel
VDL-M21-132
710-725W
210±1.5x105±1.5mm
Cells 144
Monocrystalline
N Type Half-Cell Module
Max Power Out: 725W
Max Efficiency: 23.34%
Power Tolerance: 0~+5W
Electrical Specification
Module Type | VDL-M21/132710 | VDL-M21/132715 | VDL-M21/132720 | VDL-M21/132725 |
Testing Condition | STC | STC | STC | STC |
Maximum Power(Pmax)[W] | 710 | 715 | 720 | 725 |
Maximum Power Voltage(Vmp)[V] | 42.39 | 42.54 | 42.58 | 42.83 |
Maximum Power Current(Imp)[A] | 16.75 | 16.81 | 16.87 | 16.93 |
Open Circuit Voltage (Voc)[V] | 50.44 | 50.59 | 50.74 | 50.88 |
Short Circuit Current(Isc)[A] | 17.55 | 17.61 | 17.67 | 17.73 |
Module Efficiency[%] | 22.86 | 23.02 | 23.18 | 23.34 |
Cell Type [mm] | Mono 210±1.5×105±1.5,132 Cells | Mono 210±1.5×105±1.5,132 Cells | Mono 210±1.5×105±1.5,132 Cells | Mono 210±1.5×105±1.5,132 Cells |
Operational Temperature [°C] | -40~+85℃ | -40~+85℃ | -40~+85℃ | -40~+85℃ |
Maximum System Voltage | 1500VDC | 1500VDC | 1500VDC | 1500VDC |
Max Series Fuse Rating | 30A | 30A | 30A | 30A |
Dimensions of Module | 2384×1303×33mm | 2384×1303×33mm | 2384×1303×33mm | 2384×1303×33mm |
Weight | 35.0kg | 35.0kg | 35.0kg | 35.0kg |
Advantage
 | SMBB TechnologyBetter light trapping and current collection to improve module power output and reliability. |  | Reduced Hot Spot LossOptimized electrical design and lower operating current for reduced hot pot loss and better temperature oefficien. |
 | PID ResistanceExcellent Anti-PID performance guarantee via optimized mass-production process and materials control. |  | Enhanced Mechanical LoadCertified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal). |
 | Durability Against Extreme Environmental ConditionsHigh salt mist and ammonia resistance. |  |
High Energy Generation, Low LCOELow Pmax temp coefficient increases energy production |
Structural Parameter
Dimensions of Module | 2384x1303x30mm |
Weight | 34.0kg |
Packing | 37PCS/Pallet, 666PCS/40HQ |
Glass | High Transparency Solar Glass 3.2mm |
Backsheet | White |
Frame | Anodized Aluminum Alloy & Custom Color Accepted |
J-Box | IP68 Rated |
Cable | 4.0mm2,300mm |
Bypass Diodes | 3PCS |
Wind/ Snow Load | 2400Pa/5400Pa |
Connector | MC4 Compatible |
Curve Diagram
| Nominal Operating Cell Temperature | 45±2℃ |
| Temperature Coefficient of Isc | +0.05%/℃ |
| Temperature Coefficient of Voc | -0.23%/℃ |
| Temperature Coefficient of Pmax | -0.30%/℃ |
