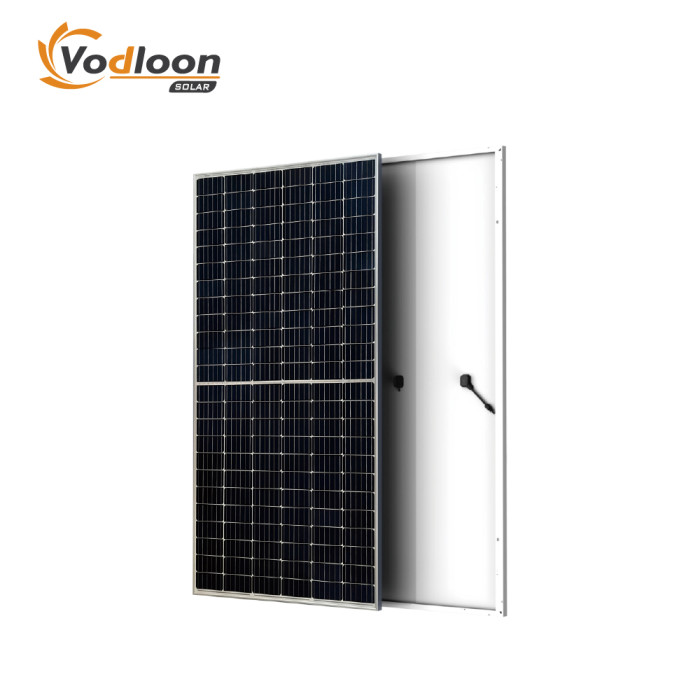

VDL-M16/144 450W 455W 460W 465W PERC Half-Cell Solar Module Mono Solar Panel

Share
Categories	Solar Panels
Trademark/Brand	Vodloon Solar Energy Storage System Manufacturer
Model	VDL-M16/144 450-465W
Cell Type [mm]	Mono166±1.5×83±1.5,144Cells
Dimensions of Module / Weight	2094x1038x35mm /22.5kg
Glass	High Transparency Solar Glass 3.2mm
Backsheet	White
Frame	Anodized Aluminum Alloy & Custom Color Accepted
Cable /Connector	4.0mm²,300mm /MC4 Compatible
Wind/ Snow Load	2400Pa/5400Pa
Certificate	CE, ISO9001, GS, RoHS，IEC, UKCA
Update Time	Dec 17,2025

Contact Now

Favorites

Detail Information

Product Details

Packaging Information

VDL-M16/144 450-465W PERC Half-Cell Solar Module

VDL-M16/144

450-465W

166±1.5 x 83±1.5mm

Cells 144

Monocrystalline

PERC Half-Cell Module

Max Power Out: 465W

Max Efficiency: 21.39%

Power Tolerance: 0~+5W

Electrical Specification

Module Type	SF-M16/144450	SF-M16/144455	SF-M16/144460	SF-M16/144465
Testing Condition	STC	STC	STC	STC
Maximum Power (Pmax) [W]	450	455	460	465
Maximum Power Voltage (Vmp) [V]	41.4	41.6	41.8	42
Maximum Power Current (Imp) [A]	10.87	10.94	11	11.07
Open Circuit Voltage (Voc) [V]	49.98	50.18	50.38	50.58
Short Circuit Current (Isc) [A]	11.33	11.39	11.44	11.49
Module Eﬃciency [%]	20.7	20.93	21.16	21.39
Cell Type [mm]	Mono166±1.5×83±1.5,144Cells	Mono166±1.5×83±1.5,144Cells	Mono166±1.5×83±1.5,144Cells	Mono166±1.5×83±1.5,144Cells
Operational Temperature [℃]	-40~+85℃	-40~+85℃	-40~+85℃	-40~+86℃
Maximum System Voltage	1500VDC	1500VDC	1500VDC	1500VDC
Max Series Fuse Rating	20A	20A	20A	20A
Dimensions of Module	2094×1038×35mm	2094×1038×35mm	2094×1038×35mm	2094×1038×35mm
Weight	22.5kg	22.5kg	22.5kg	22.5kg

Advantage

	SMBB Technology Better light trapping and current collection to improve module power output and reliability.		Reduced Hot Spot Loss Optimized electrical design and lower operating current for reduced hot pot loss and better temperature oefficien.

	PID Resistance Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.		Enhanced Mechanical Load Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).

	Durability Against Extreme Environmental Conditions High salt mist and ammonia resistance.		High Energy Generation, Low LCOE Low Pmax temp coefficient increases energy production

Structural Parameter

Dimensions of Module	2094×1038×35mm
Weight	22.5kg
Packing	31PCS/Pallet, 748PCS/40HQ
Glass	High Transparency Solar Glass 3.2mm
Backsheet	White
Frame	Anodized Aluminum Alloy & Custom Color Accepted
J-Box	IP68 Rated
Cable	4.0mm2,300mm
Bypass Diodes	3PCS
Wind/ Snow Load	2400Pa/5400Pa
Connector	MC4 Compatible

Curve Diagram


Nominal Operating Cell Temperature	45±2℃
Temperature Coefficient of Isc	+0.06%/℃
Temperature Coefficient of Voc	-0.30%/℃
Temperature Coefficient of Pmax	-0.39%/℃

Download

VDL-M16-144 450-465W PERC Half-Cell Solar Module

VDL-M16/144 450W 455W 460W 465W PERC Half-Cell Solar Module Mono Solar Panel

VDL-M16/144

450-465W

SMBB Technology

Better light trapping and current collection to improve module power output and reliability.

Reduced Hot Spot Loss

Optimized electrical design and lower operating current for reduced hot pot loss and better temperature oefficien.

PID Resistance

Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.

Enhanced Mechanical Load

Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).

Durability Against Extreme Environmental Conditions

High salt mist and ammonia resistance.

High Energy Generation, Low LCOE

Low Pmax temp coefficient increases energy production

+0.06%/℃

-0.30%/℃

-0.39%/℃

Packing：31PCS/Pallet,748PCS/40HQ

L=

H=

W=
