Home / All / Solar Power System / VSR-1KW-1.28KWh-Eco RESIDENTIAL ENERGY STORAGE SYSTEM STANDARD PROPOSAL

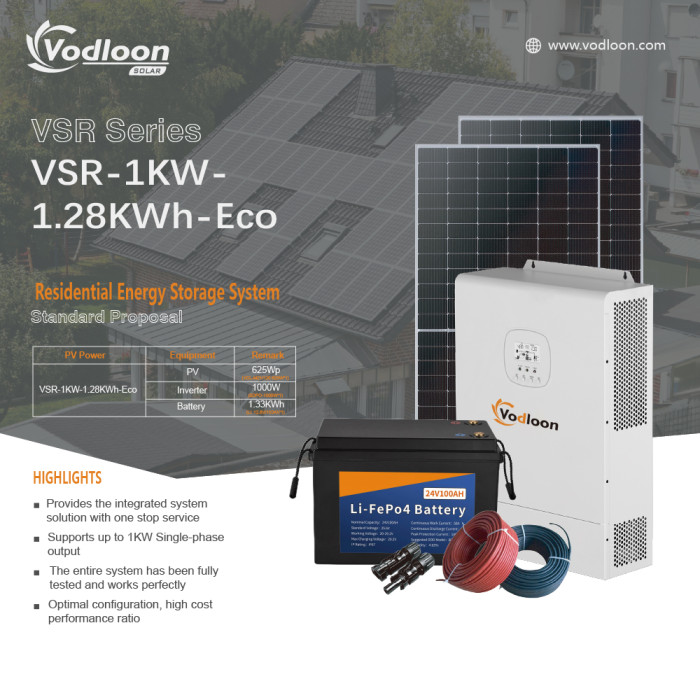

VSR-1KW-1.28KWh-Eco RESIDENTIAL ENERGY STORAGE SYSTEM STANDARD PROPOSAL

Share
Categories	Solar Power System
Brand	Vodloon Solar Energy Storage System Manufacturer
Model	VSR-1KW-1.28KWh-Eco 625Wp/1kW/1.28kWh

Detail Information

RESIDENTIAL ENERGY STORAGE SYSTEM STANDARD PROPOSAL
PV Power	Equipment		Model	Unit	Quantity	Remark
VSR-1KW-1.28KWh-Eco 625Wp/1kW/1.28kWh	PV modules		VDL-M21/120 625W	pcs	1	1pcs/string, 1string
	Inverter		SDPO-1000W	pcs	1
	Batttery		SBT-12.8100	pcs	1	Power cable included
	Connector		MC4	pair	1
	PV cable		PV1-F 1*4mm²	m	25
	Moniting		WIFI module	pcs	1	Optional
MODEL	VSR-1KW-1.33KWh-Eco
System Parameter
AC rated power		1kw
Battery capacity		1280Wh
AC voltage		110/120VAC±20% ;220/230/240VAC±20%
Rated grid frequency		50/60Hz
Inverter Parameter
Model		SDPO-1000W
Rated power		1000VA 1000W
Frequency		50/60 Hz
Nominal Voltage		110/120VAC±20% ;220/230/240VAC±20%
Max. Efficiency		>95% (load, full battery)
Max. PV Voltage (V)		430VDC
PV Array MPPT Voltage Range		30~430VDC
Max . Solar Input Current		30A
Max. Short Current(A)		30A
Dimensions, D x W x H(mm)		29024091
Weight (Kgs )		3
Battery Parameter
Model		SBT-12.8100
Battery Type		LiFePO4(LFP)
Nominal Voltage (V)		12.8
Nominal Capacity (WH)		1280
Voltage Range (V)		10~14.6
Max. Charge/Discharge Current(A)		50 / 100
Communicaiton		/
Weight (Kgs )		10.3
Design Life		10 years+
Cycle Life		>6000 @25°C
Environment
Maximum operation altitude		2000m
Working Temperature		0°~ 50°C Charge ; -10°~ 50°C Discharge
Shelf Temperature		-20°~ 60°C
