Home / All / Solar Pumping System / I4PC(b) Built-in MPPT Controller 4 inch Solar-Powered High Quality Centrifugal Submersible Plastic Impeller Pump

I4PC(b) Built-in MPPT Controller 4 inch Solar-Powered High Quality Centrifugal Submersible Plastic Impeller Pump

Share
Categories	Solar Pumping System
Trademark/Brand	Vodloon Solar Energy Storage System Manufacturer
Model	I4PC(b)
Categories	Built-in Controller Solar Submersible Pump
Brand	ZRI
Model	I4PC(b)
Pump Type	Impeller Type Solar Submersible Pump
Outlet	1.25/2.0 inch
Pump Diameter	4 inch / 95 mm
Application	Domestic water supply, small area irrigation
Certificate	CE, ISO9001, GS, RoHS
Warranty	2 years
Package type	Wooden Case
Update Time	Dec 17,2025

Contact Now

Favorites

Detail Information

Product Details

Packaging Information

Installation Guide

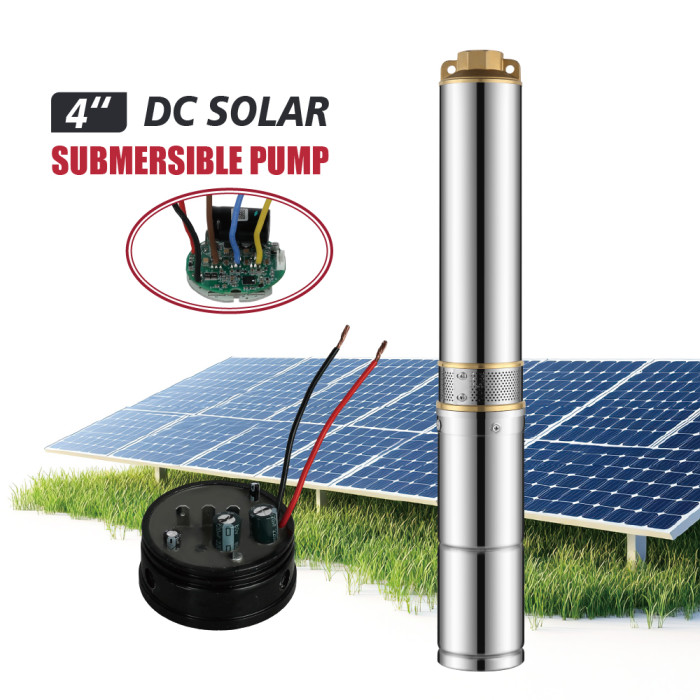

4 INCH Built-in Controller Solar Submersible Pump

The 4-inch Built-in Controller Solar Submersible Pump is designed for reliable water pumping in off-grid locations. Powered directly by solar panels, this solar bore pump eliminates the need for traditional electricity or fossil fuel, making it an eco-friendly and cost-effective solution.

Equipped with an MPPT controller and a brushless DC motor, this solar DC submersible water pump ensures maximum energy efficiency and stable operation. Its centrifugal design enables it to deliver stable water flow efficiently even in deep wells or low-yield water sources, minimizing maintenance requirements.

This durable and versatile DC pump is ideal for agricultural irrigation, livestock watering, and rural water supply projects. Whether for farms, gardens, or remote communities, the Brushless DC Solar Water Pump provides a sustainable and reliable water pumping solution.

No.	Item	Rated Voltage	Optimum input voltage(DC)	Rated Power	Optimum input Power(W)	Max. Flow	Max. Head	Outlet	Cable	Controller	Solar panel Open circuit voltage (VOC)
A	I4PC3.5-50-48-400B	48V	30-110V	400W	200-900W	3.5m³/h	50m	1.25 "	2m	Built-in	＜150V
B	I4PC3.5-65-72-600B	72V	50-170V	600W	300-1200W	3.5m³/h	65m	1.25 "	2m	Built-in	＜200V
C	I4PC3.5-95-96-750B	96V	60-220V	750W	400-1600W	3.5m³/h	95m	1.25 "	2m	Built-in	＜250V
D	I4PC3.5-95-120-900B	110V	60-220V	900W	400-1500W	3.5m³/h	95m	1.25 "	2m	Built-in	＜250V
E	I4PC3.5-110-110-1100B	110V	60-220V	1100W	400-1600W	3.5m³/h	110m	1.25 "	2m	Built-in	＜250V
F	I4PC4.0-35-48-400B	48V	30-110V	400W	200-900W	4.0m³/h	35m	1.25 "	2m	Built-in	＜150V
G	I4PC4.0-50-72-600B	72V	50-170V	400W	300-1200W	4.0m³/h	50m	1.25 "	2m	Built-in	＜200V
H	I4PC4.0-70-96-750B	96V	60-220V	600W	400-1600W	4.0m³/h	70m	1.25 "	2m	Built-in	＜250V
I	I4PC4.0-80-120-900B	110V	60-220V	750W	400-1500W	4.0m³/h	80m	1.25 "	2m	Built-in	＜250V
J	I4PC4.0-95-110-1100B	110V	60-220V	1100W	400-1600W	4.0m³/h	95m	1.25 "	2m	Built-in	＜250V
K	I4PC4.5-130-110-1500B	110V	60-220V	1500W	600-1800W	4.5m³/h	130m	1.25 "	2m	Built-in	＜250V
L	I4PC6-32-48-400B	48V	30-110V	400W	200-900W	6.0m³/h	32m	1.25 "	2m	Built-in	＜150V
M	I4PC6-42-72-600B	72V	50-170V	600W	300-1200W	6.0m³/h	42m	1.25 "	2m	Built-in	＜200V
N	I4PC6-56-96-750B	96V	60-220V	750W	400-1600W	6.0m³/h	56m	1.25 "	2m	Built-in	＜250V
O	I4PC6-84-110-1100B	110V	60-220V	1100W	400-1600W	6.0m³/h	84m	1.25 "	2m	Built-in	＜250V
P	I4PC6-112-110-1300B	110V	60-200V	1300W	600-1800W	6.0m³/h	112m	1.25 "	2m	Built-in	＜250V
Q	I4PC6-135-110-1500B	110V	60-220V	1500W	600-1800W	6.0m³/h	135m	1.25 "	2m	Built-in	＜250V
R	I4PC9-45-96-750B	96V	60-220V	750W	400-1600W	9.0m³/h	45m	2.0 "	2m	Built-in	＜250V
S	I4PC9-58-110-1100B	110V	60-220V	1100W	400-1600W	9.0m³/h	58m	2.0 "	2m	Built-in	＜250V
T	I4PC9-71-110-1300B	110V	60-220V	1300W	600-1800W	9.0m³/h	71m	2.0 "	2m	Built-in	＜250V
U	I4PC9-85-110-1500B	110V	60-220V	1500W	600-1800W	9.0m³/h	85m	2.0 "	2m	Built-in	＜250V
V	I4PC13-36-96-750B	96V	60-220V	750W	400-1600W	13m³/h	36m	2.0 "	2m	Built-in	＜250V
W	I4PC13-49-110-1100B	110V	60-220V	1100W	400-1600W	13m³/h	49m	2.0 "	2m	Built-in	＜250V
X	I4PC13-54-110-1300B	110V	60-220V	1300W	600-1800W	13m³/h	54m	2.0 "	2m	Built-in	＜250V
Y	I4PC13-60-110-1500B	110V	60-220V	1500W	600-1800W	13m³/h	60m	2.0 "	2m	Built-in	＜250V
Z	I4PC17-48-110-1500B	110V	60-220V	1500W	600-1800W	17m³/h	48m	2.0 "	2m	Built-in	＜250V

Application

● Application of deep well pump to irrigation	● Garden watering
● Village and town water supply	● Enviroment friendly
● Clean drinking water	● Pumping and drip irrigation

Pump Details

Trusted Manufacturer:

We specialize in solar-powered submersible bore pumps with years of OEM/ODM experience, ensuring reliable quality and a strong global supply chain.

High Efficiency & Innovation:

Equipped with an MPPT controller and brushless DC motor, our DC centrifugal solar water pump maximizes energy efficiency and delivers stable water flow in deep wells or low-yield sources.

Versatile Applications:

Ideal for agriculture irrigation, livestock watering, and rural water supply projects, providing a sustainable solution for off-grid water needs.

Fully Customizable:

Options for pump size, flow rate, voltage, and branding – perfect for private label or tailored solutions to suit your specific project requirements.

● Permanent magnet DC brush less synchronous motor: the efficiency is improved by 15- 20%

● Oil filled motors for reliability and to avoid oil contamination

● Alloy mechanical seal ,longer working life and high reliability

● NSK Angular Contact Bearing

Controller Details

- MPPT: Maximum Power Point Tracking

- DSP: Digital Signal Processing - Running Speed Control: stepless speed regulation

- Timing function: Set pump running time

- Over current protection: Motor stops automatically when stucked

- Soft starting protection:Protect the motor & bearing

- Lack of water protection: Restart Automatically upon the Water Level

- Low-voltage / Over-voltage protection: Protect the motor & controller

- Reverse voltage protection: Circuit breaking automatically when reverse connection

- Short-circuit protection: Automatically stops when Short wiring of motor

Test Report

I4PC3.5-50-48-400B

I4PC3.5-65-72-600B

I4PC3.5-95-96-750B

I4PC3.5-95-120-900B

I4PC3.5-110-110-1100B

I4PC4.0-35-48-400B

I4PC4.0-50-72-600B

I4PC4.0-70-96-750B

I4PC4.0-80-120-900B

I4PC4.0-95-110-1100B

I4PC4.5-130-110-1500B

I4PC6-32-48-400B

I4PC6-42-72-600B

I4PC6-56-96-750B

I4PC6-84-110-1100B

I4PC6-112-110-1300B

I4PC6-135-110-1500B

I4PC9-45-96-750B

I4PC9-58-110-1100B

I4PC9-71-110-1300B

I4PC9-85-110-1500B

I4PC13-36-96-750B

I4PC13-49-110-1100B

I4PC13-54-110-1300B

I4PC13-60-110-1500B

I4PC17-48-110-1500B

Packaging Information

Package Include: Additional materials need to be prepared:

● 1 x 4 inch DC solar centrifugal pump with one 2m cable

● 1 x Pump outlet joint connector

● 1 x Splice kit for cable join

● 1 x Splice kit for waterproof

● Suitable solar panels. Refer to the suggestions provided in the instruction book.

● PV cable (for connecting solar panels to the controller).

● Poly pipe from the pump to the water tank. We recommend using a poly pipe with a diameter of 1 inch or more.

● A stainless steel wire (referred to as a safety cable) to secure the pump in the bore. If pumping water from a dam or river, a float setup is required

Packaged Data

No.	Item	Length （CM）	Width （CM）	Height （CM）	Volume （M³）	Weight （KG）	Packaging materials
A	I4PC3.5-50-48-400B	90.89	12	10	0.03408375	14	Wooden Case
B	I4PC3.5-65-72-600B	93.06	12	10	0.0348975	14.5	Wooden Case
C	I4PC3.5-95-96-750B	96.74	12	10	0.0362775	15	Wooden Case
D	I4PC3.5-95-120-900B	99	12	10	0.037125	16	Wooden Case
E	I4PC3.5-110-110-1100B	100.41	12	10	0.03765375	16.5	Wooden Case
F	I4PC4.0-35-48-400B	90.23	12	10	0.03383625	14	Wooden Case
G	I4PC4.0-50-72-600B	92.71	12	10	0.03476625	14.5	Wooden Case
H	I4PC4.0-70-96-750B	96.69	12	10	0.03625875	14.5	Wooden Case
I	I4PC4.0-80-120-900B	100.67	12	10	0.03775125	16	Wooden Case
J	I4PC4.0-95-110-1100B	103.15	12	10	0.03868125	16.5	Wooden Case
K	I4PC4.5-130-110-1500B	111.39	12	10	0.04177125	17	Wooden Case
L	I4PC6-32-48-400B	85.65	12	10	0.03211875	14	Wooden Case
M	I4PC6-42-72-600B	85.65	12	10	0.03211875	14.5	Wooden Case
N	I4PC6-56-96-750B	89.76	12	10	0.03366	14.5	Wooden Case
O	I4PC6-84-110-1100B	94.97	12	10	0.03561375	16	Wooden Case
P	I4PC6-112-110-1300B	101.68	12	10	0.03813	16.5	Wooden Case
Q	I4PC6-135-110-1500B	110.17	12	10	0.04131375	17	Wooden Case
R	I4PC9-45-96-750B	88.03	12	10	0.03301125	14.5	Wooden Case
S	I4PC9-58-110-1100B	90.93	12	10	0.03409875	16	Wooden Case
T	I4PC9-71-110-1300B	95.33	12	10	0.03574875	16.5	Wooden Case
U	I4PC9-85-110-1500B	98.23	12	10	0.03683625	17	Wooden Case
V	I4PC13-36-96-750B	91.6	12	10	0.03435	14.5	Wooden Case
W	I4PC13-49-110-1100B	91.6	12	10	0.03435	16	Wooden Case
X	I4PC13-54-110-1300B	96.16	12	10	0.03606	16.5	Wooden Case
Y	I4PC13-60-110-1500B	99.23	12	10	0.03721125	17	Wooden Case
Z	I4PC17-48-110-1500B	96.08	12	10	0.03603	17	Wooden Case

No.	Model	Controller Voc	Solar Panel Connection
A	I4PC3.5-50-48-400D	SSL-4C48-110VOC
B	I4PC3.5-65-72-600D	SSL-4C72-170VOC
C	I4PC3.5-95-96-750D	SSL-4C96-220VOC
D	I4PC3.5-95-120-900D	SSL-4C96-220VOC
E	I4PC3.5-110-110-1100D	SSL-4C11-220VOC
F	I4PC4.0-35-48-400D	SSL-4C48-110VOC
G	I4PC4.0-50-72-600D	SSL-4C72-170VOC
H	I4PC4.0-70-96-750D	SSL-4C96-220VOC
I	I4PC4.0-80-120-900D	SSL-4C96-220VOC
J	I4PC4.0-95-110-1100D	SSL-4C11-220VOC
K	I4PC4.5-130-110-1500D	SSL-4C11-220VOC
L	I4PC6-32-48-400D	SSL-4C48-110VOC
M	I4PC6-42-72-600D	SSL-4C72-170VOC
N	I4PC6-56-96-750D	SSL-4C96-220VOC
O	I4PC6-84-110-1100D	SSL-4C96-220VOC
P	I4PC6-112-110-1300D	SSL-4C11-220VOC
Q	I4PC6-135-110-1500D	SSL-4C11-220VOC
R	I4PC9-45-96-750D	SSL-4C96-220VOC
S	I4PC9-58-110-1100D	SSL-4C11-220VOC
T	I4PC9-71-110-1300D	SSL-4C11-220VOC
U	I4PC9-85-110-1500D	SSL-4C11-220VOC
V	I4PC13-36-96-750D	SSL-4C96-220VOC
W	I4PC13-49-110-1100D	SSL-4C96-220VOC
X	I4PC13-54-110-1300D	SSL-4C11-220VOC
Y	I4PC13-60-110-1500D	SSL-4C11-220VOC
Z	I4PC17-48-110-1500D	SSL-4C11-220VOC
