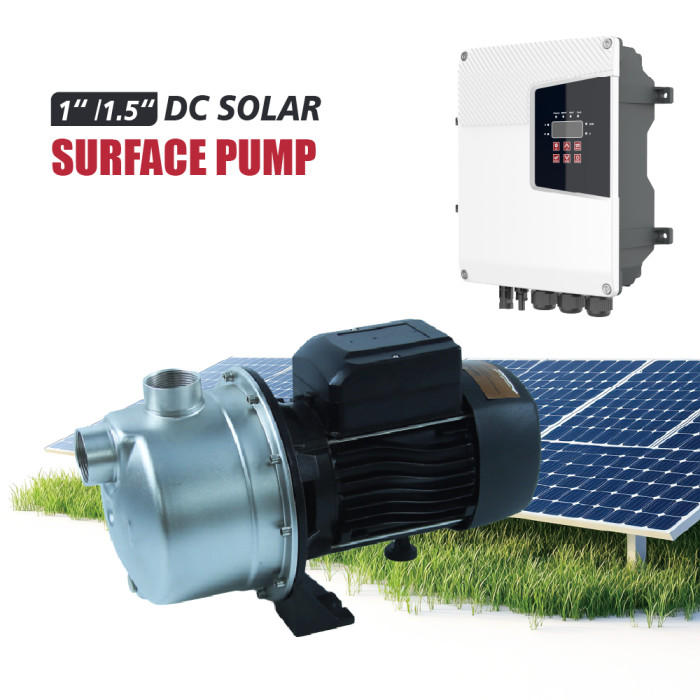

ZSGJ-ADHY AC/DC Solar-Powered Jet Surface Pump with MPPT Controller - Ideal for Drinking Water Applications | OEM, ODM & Wholesale Opportunities Available

Share
Categories	Solar Pumping System
Trademark/Brand	Vodloon Solar Energy Storage System Manufacturer
Model	ZSGJ-ADHY
Categories	AC/DC Solar Surface Pump
Brand	ZRI
Model	ZSGJ-ADHY
Pump Type	Jet Type Solar Surface Pump
Outlet	1 inch，2 inch， 3 inch，4 inch，5 inch
Application	Domestic water supply, small area irrigation
Certificate	CE, ISO9001, GS, RoHS
Warranty	2 years
Package type	Wooden Case
Update Time	Dec 17,2025

Contact Now

Favorites

Detail Information

Product Details

Packaging Information

Installation Guide

Jet Type Solar Surface Pump

The Jet Type Solar Surface Pump is designed for reliable water pumping in off-grid locations. Powered directly by solar panels, this solar water pump eliminates the need for traditional electricity or fuel, making it an eco-friendly and cost-effective solution.

Equipped with an MPPT controller and a brushless DC motor, this jet type solar surface pump ensures maximum energy efficiency and stable operation. It maintains consistent water flow even with shallow water sources or variable supply conditions, reducing maintenance needs.

This durable and versatile DC surface pump is ideal for agricultural irrigation, livestock watering, and rural water supply projects. Whether for farms, gardens, or remote communities, the jet type brushless AC/DC solar surface pump provides a sustainable and long-lasting water pumping solution

No.	Item	Rated Voltage	Optimum input voltage(DC)	Rated Power	Optimum input Power(W)	Max. Flow	Max. Head	Outlet	Cable	Controller	Solar panel Open circuit voltage (VOC)
A	ZSGJ3.1-35-72-550-AD	72V	50-170V	550W	300-1200W	3.1m³/h	35m	1.0×1.0 "	1m	ADHY	＜200V
B	ZSGJ3.1-40-96-750-AD	96V	60-220V	750W	400-1600W	3.1m³/h	40m	1.0×1.0 "	1m	ADHY	＜250V
C	ZSGJ4.0-60-200-1500-AD	200V	120-300V	1500W	600-1800W	4.0m³/h	60m	1.5×1.5 "	1m	ADHY	＜450V
D	ZSGJ6.0-80-300-2200-AD	300V	80-400V	2200W	1200-2800W	6.0m³/h	80m	1.5×1.5 "	1m	ADHY	＜450V

Application

● Application of lake or river to irrigation	● Garden watering
● Village and town water supply	● Enviroment friendly
● Clean drinking water	● Pumping and drip irrigation

Pump Details

Trusted Manufacturer

We specialize in solar-powered pumps with years of OEM/ODM experience, boasting reliable quality and a robust global supply chain to support your business needs.

High Efficiency & Innovation

Equipped with an MPPT controller and a brushless DC motor, our solar surface water pump maximizes energy efficiency and delivers stable water flow – even with shallow water sources or variable supply conditions.

Versatile Applications

Ideal for agricultural irrigation, livestock watering, and rural water supply projects, it provides a sustainable solution for off-grid or remote water needs.

Fully Customizable

We offer flexible options for pump size, flow rate, voltage, and branding – perfect for private labeling or tailored solutions to match your specific project requirements.

● Permanent magnet DC brush less synchronous motor: the efficiency is improved by 15- 20%

● Oil filled motors for reliability and to avoid oil contamination

● Alloy mechanical seal ,longer working life and high reliability

● NSK Angular Contact Bearing

Controller Details

- MPPT: Maximum Power Point Tracking

- Running Speed Control: stepless speed regulation

- Timing function: Set pump running time

- Over current protection: Motor stops automatically when stucked

- Soft starting protection:Protect the motor & bearing

- Lack of water protection: Restart Automatically upon the Water Level

- Low-voltage / Over-voltage protection: Protect the motor & controller

- Reverse voltage protection: Circuit breaking automatically when reverse connection

- Short-circuit protection: Automatically stops when Short wiring of motor

Test Report

ZSGJ3.1-35-72-550-AD

ZSGJ3.1-40-96-750-AD

ZSGJ4.0-60-110-1500-AD

ZSGJ6.0-80-300-2200-AD

Packaging Information

Package Include: Additional materials need to be prepared:

● 1 x AC/DC solar surface pump with one 1m cable

● 1 x AC/DC Pump controler with MPPT function

● 1 x Plastic float swith (sensor for tank)

● 1 x Pump outlet joint connector

● 1 x Splice kit for cable join

● 1 x Splice kit for waterproof

● Suitable solar panels. Refer to the suggestions provided in the instruction book.

● Motor power cable (2 wires plus earth). We recommend using a cable that is at least thicker

than the original cable in the pump.

● PV cable (for connecting solar panels to the controller).

● Poly pipe from the pump to the water tank. We recommend using a poly pipe with a diameter

of 1 inch or more.

● A stainless steel wire (referred to as a safety cable) to secure the pump in the bore. If pumping

water from a dam or river, a float setup is required.

Packaged Data

No.	Item	Water pump Packaging					Controller Packaging					Packaging materials
No.	Item	Length (CM）	Width(CM)	Height (CM)	Volume (m³)	Weight(kg)	Length (CM）	Width (CM)	Height (CM)	Volume (m³)	Weight (kg)	Packaging materials
A	ZSGJ3.1-35-72-550-AD	36	25	38	0.0342	12	52	30	15	0.0234	6.2	Wooden Case
B	ZSGJ3.1-40-96-750-AD	36	25	38	0.0342	13	52	30	15	0.0234	6.2	Wooden Case
C	ZSGJ4.0-60-200-1500-AD	36	25	38	0.0342	15	52	30	15	0.0234	6.2	Wooden Case
D	ZSGJ6.0-80-300-2200-AD	36	25	38	0.0342	16	52	30	15	0.0234	6.2	Wooden Case

No.	Model	Controller Voc	Solar Panel Connection
A	ZSGJ3.1-35-72-550-AD	SSL-4C72-170VOC
B	Z-40-96-750-AD	SSL-4C96-220VOC
C	ZSGJ4.0-60-200-1500-AD	SSL-4C20-430VOC
D	ZSGJ6.0-80-300-2200-AD	SSL-4C30-430VOC
