Home / All / Solar Pumping System / SSHF Solar-Powered Centrigugal Surface Pump Solar Water Pump with MPPT Controller for Agricultural Irrigation

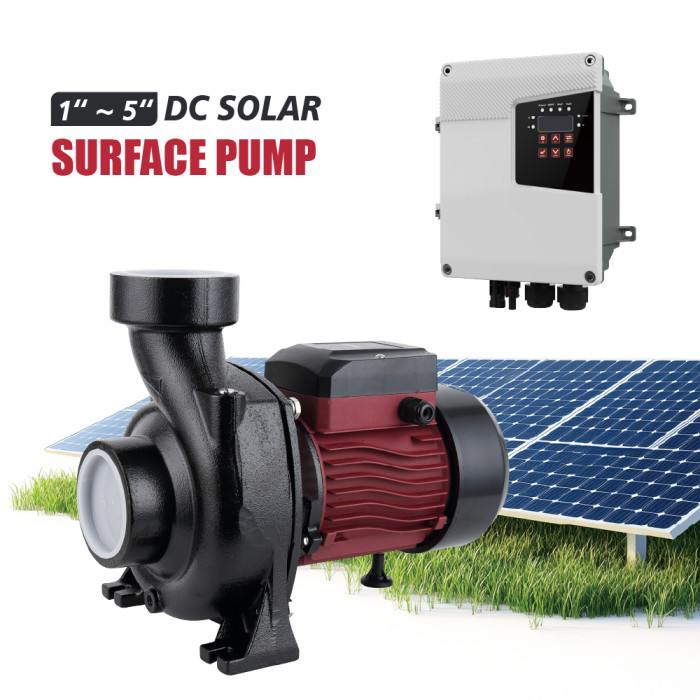

SSHF Solar-Powered Centrigugal Surface Pump Solar Water Pump with MPPT Controller for Agricultural Irrigation

SSHF Solar-Powered Centrigugal Surface Pump Solar Water Pump with MPPT Controller for Agricultural Irrigation
SSHF Solar-Powered Centrigugal Surface Pump Solar Water Pump with MPPT Controller for Agricultural IrrigationSSHF Solar-Powered Centrigugal Surface Pump Solar Water Pump with MPPT Controller for Agricultural IrrigationSSHF Solar-Powered Centrigugal Surface Pump Solar Water Pump with MPPT Controller for Agricultural IrrigationSSHF Solar-Powered Centrigugal Surface Pump Solar Water Pump with MPPT Controller for Agricultural IrrigationSSHF Solar-Powered Centrigugal Surface Pump Solar Water Pump with MPPT Controller for Agricultural IrrigationSSHF Solar-Powered Centrigugal Surface Pump Solar Water Pump with MPPT Controller for Agricultural Irrigation
Share
CategoriesSolar Pumping System
Trademark/BrandVodloon Solar Energy Storage System Manufacturer
ModelSSHF
CategoriesDC Solar Surface Pump
BrandZRI
ModelSSHF
Pump TypeCentrifugal Type Solar Surface Pump
Outlet1 inch，2 inch， 3 inch，4 inch，5 inch
ApplicationDomestic water supply, small area irrigation
CertificateCE, ISO9001, GS, RoHS
Warranty2 years
Package typeWooden Case
Update TimeDec 17,2025
Contact Now
Favorites
Detail Information
Product Details
Packaging Information
Installation Guide
The Centrifugal Type Solar Surface Pump
introduce
The Centrifugal Type Solar Surface Pump is designed for reliable water pumping in off-grid locations. Powered directly by solar panels, this solar water pump eliminates the need for traditional electricity or fuel, making it an eco-friendly and cost-effective solution.

Equipped with an MPPT controller and a brushless DC motor, this solar dc surface water pump ensures maximum energy efficiency and stable operation. Maintain consistent water flow even in lake ,river,shallow water sources or variable water supply conditions, significantly reducing maintenance requirements.

This durable and versatile DC pump is ideal for agriculture irrigation, livestock watering, and rural water supply projects. Whether for farms, gardens, or remote communities, the brushless dc solar water pump provides a sustainable and long-lasting water pumping solution.
No.
Item
Rated Voltage
Optimum input voltage(DC)
Rated Power
Optimum input Power(W)
Max. Flow
Max. Head
Outlet
Cable
Controller
Solar panel Open circuit voltage (VOC)
A
SSHF6-24-72-550
72V
50-170V
550W
300-1200W
6m³/h
24m
1.0×1.0 "
1m
SSCO
＜200V
B
SSHF15-14-48-550
48V
30-110V
550W
200-900W
15m³/h
14m
2.0×2.0 "
1m
SSCO
＜150V
C
SSHF21-14-96-750
96V
60-220V
750W
400-1600W
21m³/h
14m
2.0×2.0 "
1m
SSCO
＜250V
D
SSHF26-15-110-1100
110V
60-220V
1100W
400-1600W
26m³/h
15m
2.0×2.0 "
1m
SSCO
＜250V
E
SSHF26-15-150-1100
150V
80-260V
1100W
400-1600W
26m³/h
15m
2.0×2.0 "
1m
SSCO
＜450V
F
SSHF45-17-110-1500
110V
60-220V
1500W
600-1800W
45m³/h
17m
3.0×3.0 "
1m
SSCO
＜250V
G
SSHF45-17-200-1500
200V
120-300V
1500W
600-1800W
45m³/h
17m
3.0×3.0 "
1m
SSCO
＜450V
H
SSHF60-16-300-2200
80-285V
80-430V
2200W
900-2800W
60m³/h
16m
4.0×4.0 "
1m
SSCO
＜450V
I
SSHF80-17-300-3000
80-285V
80-430V
3000W
900-3500W
80m³/h
17m
5.0×5.0 "
1m
SSCO
＜450V
Application
● Application of lake or river to irrigation
● Garden watering
● Village and town water supply
● Enviroment friendly
● Clean drinking water
● Pumping and drip irrigation
Pump Details

Trusted Manufacturer

We specialize in solar-powered pumps with years of OEM/ODM experience, boasting reliable quality and a robust global supply chain to support your business needs.

High Efficiency & Innovation
Equipped with an MPPT controller and a brushless DC motor, our DC solar surface water pump maximizes energy efficiency and delivers stable water flow – even with shallow water sources or variable supply conditions.

Versatile Applications
Ideal for agricultural irrigation, livestock watering, and rural water supply projects, it provides a sustainable solution for off-grid or remote water needs.

Fully Customizable
We offer flexible options for pump size, flow rate, voltage, and branding – perfect for private labeling or tailored solutions to match your specific project requirements.
why choose us
水泵细节
水泵细节
水泵细节
● Permanent magnet DC brush less synchronous motor: the efficiency is improved by 15- 20%
● Oil filled motors for reliability and to avoid oil contamination
● Alloy mechanical seal ,longer working life and high reliability
● NSK Angular Contact Bearing
Controller Details
水泵细节

- MPPT: Maximum Power Point Tracking

- Running Speed Control: stepless speed regulation

- Timing function: Set pump running time

- Over current protection: Motor stops automatically when stucked

- Soft starting protection:Protect the motor & bearing

- Lack of water protection: Restart Automatically upon the Water Level

- Low-voltage / Over-voltage protection: Protect the motor & controller

- Reverse voltage protection: Circuit breaking automatically when reverse connection

- Short-circuit protection: Automatically stops when Short wiring of motor
控制器细节
控制器细节
控制器细节
Test Report
SSHF6-24-72-550

SSHF15-14-48-550

SSHF21-14-96-750

SSHF26-15-110-1100

SSHF26-15-150-1100

SSHF45-17-110-1500

SSHF45-17-200-1500

SSHF60-16-300-2200

SSHF80-17-300-3000

Packaging Information
test
test
test
test
Package Include:                                                                                                          Additional materials need to be prepared:
● 1 x DC solar surface pump with one 1m cable
● 1 x Pump controler with MPPT function
● 1 x Plastic float swith (sensor for tank)
● 1 x Pump outlet joint connector
● 1 x Splice kit for cable join
● 1 x Splice kit for waterproof
● Suitable solar panels. Refer to the suggestions provided in the instruction book.
● Motor power cable (2 wires plus earth). We recommend using a cable that is at least thicker
   than the original cable in the pump.
● PV cable (for connecting solar panels to the controller).
● Poly pipe from the pump to the water tank. We recommend using a poly pipe with a diameter
   of 1 inch or more.
● A stainless steel wire (referred to as a safety cable) to secure the pump in the bore. If pumping
   water from a dam or river, a float setup is required.
Packaged Data
No.
Item
Length （CM）
Width （CM）
Height （CM）
Volume （M³）
Weight （KG）
Packaging materials
A
SSHF6-24-72-550
48
26
38
0.047424
22
Wooden Case
B
SSHF15-14-48-550
43
26
36
0.040248
23
Wooden Case
C
SSHF21-14-96-750
43
26
36
0.040248
25
Wooden Case
D
SSHF26-15-110-1100
43
26
36
0.040248
26
Wooden Case
E
SSHF26-15-150-1100
43
26
36
0.040248
26
Wooden Case
F
SSHF45-17-110-1500
48
26
38
0.047424
27
Wooden Case
G
SSHF45-17-200-1500
48
26
38
0.047424
27
Wooden Case
H
SSHF60-16-300-2200
52
28
38
0.055328
29
Wooden Case
I
SSHF80-17-300-3000
55
30
38
0.0627
32
Wooden Case
System Wiring Instruction
tag3-1
tag3-1
How to configure solar panels
● Connect the solar panels accurately according to the product manual, as excessively high VOC voltage may cause irreversible damage to the controller.
● It is generally recommended to calculate the required solar panel power based on 1.3 to 1.5 times the rated power of the water pump.
● When connecting the solar panels, ensure that the VOC voltage of the solar panels does not exceed the maximum VOC voltage limit of the controller.
<
No.
Model
Controller Voc
Solar Panel Connection
A
SSHF6-24-72-550
SSL-5F72-170VOC
Solar Panel A Connection
B
SSHF15-14-48-550
SSL-5F48-110VOC
Solar Panel A Connection
C
SSHF21-14-96-750
SSL-5F96-220VOC
Solar Panel A Connection
D
SSHF26-15-110-1100
SSL-5F11-220VOC
Solar Panel A Connection
E
SSHF26-15-150-1100
SSL-5F15-430VOC
Solar Panel A Connection
F
SSHF45-17-110-1500
SSL-5F11-220VOC
Solar Panel A Connection
G
SSHF45-17-200-1500
SSL-5F20-430VOC
Solar Panel A Connection
H
SSHF60-16-300-2200
SAD-5F30-220VOC
Solar Panel A Connection
I
SSHF80-17-300-3000
SAD-5F30-220VOC
Solar Panel A Connection
