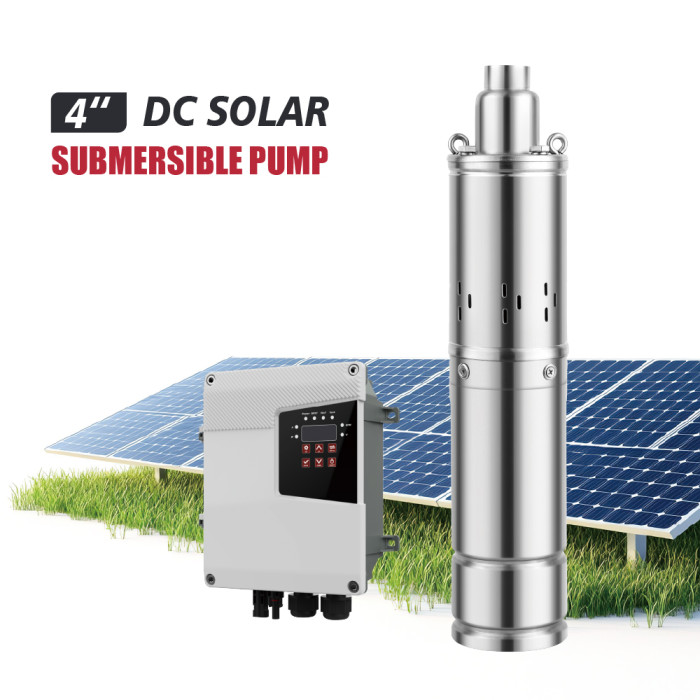

S4SS-4 Inch DC screw type solar bore pump Solar Pump with MPPT Controller for Bulk Orders and OEM/ODM

Share
Categories	Solar Pumping System
Trademark/Brand	Vodloon Solar Energy Storage System Manufacturer
Model	S4SS
Categories	DC Solar Submersible Pump
Brand	ZRI
Model	S4SS
Pump Type	Screw Type Solar Submersible Pump
Outlet	1.0 inch
Pump Diameter	4 inch / 95 mm
Application	Domestic water supply, drinking water
Certificate	CE, ISO9001, GS, RoHS
Warranty	2 years
Package type	Wooden Case
Update Time	Dec 17,2025

Contact Now

Favorites

Detail Information

Product Details

Packaging Information

Installation Guide

4 INCH DC BRUSHLESS SCREW SOLAR PUMP

The 4-inch Solar Powered DC Screw Submersible Bore Pump is designed for reliable water pumping in off-grid locations. Powered directly by solar panels, this solar bore pump eliminates the need for traditional electricity or fuel, making it an eco-friendly and cost-effective solution.

Equipped with an MPPT controller and a brushless DC motor, this solar dc submersible water pump ensures maximum energy efficiency and stable operation. Its DC screw type design allows it to maintain consistent water flow even in deep wells or low-yield water sources, reducing maintenance needs.

This durable and versatile DC pump is ideal for agriculture irrigation, livestock watering, and rural water supply projects. Whether for farms, gardens, or remote communities, the brushless dc solar water pump provides a sustainable and long-lasting water pumping solution.

No.	Item	Rated Voltage	Optimum input voltage(DC)	Rated Power	Optimum input Power(W)	Max. Flow	Max. Head	Outlet	Cable	Controller	Solar panel Open circuit voltage (VOC)
A	S4SS1.7-70-48-500D	48V	30-110V	500W	200-900W	1.7m³/h	70m	1.0 "	2m	SSCO	＜150V
B	S4SS2.0-95-96-750D	96V	60-220V	750W	400-1600W	2.0m³/h	95m	1.0 "	2m	SSCO	＜250V
C	S4SS2.0-110-110-1100D	110V	60-220V	1100W	400-1600W	2.0m³/h	110m	1.0 "	2m	SSCO	＜250V
D	S4SS2.2-150-110-1300D	110V	60-220V	1300W	600-1800W	2.2m³/h	150m	1.0 "	2m	SSCO	＜250V
E	S4SS2.0-110-150-1100D	150V	80-260V	1100W	400-1600W	2.0m³/h	110m	1.0 "	2m	SSCO	＜450V
F	S4SS2.2-150-180-1300D	200V	120-300V	1300W	600-1800W	2.2m³/h	150m	1.0 "	2m	SSCO	＜450V

Application

● Application of deep well pump to irrigation	● Garden watering
● Village and town water supply	● Enviroment friendly
● Clean drinking water	● Pumping and drip irrigation

Pump Details

Trusted Manufacturer:

We specialize in solar-powered submersible bore pumps with years of OEM/ODM experience, ensuring reliable quality and a strong global supply chain.

High Efficiency & Innovation:

Equipped with an MPPT controller and brushless DC motor, our DC screw type solar water pump maximizes energy efficiency and delivers stable water flow in deep wells or low-yield sources.

Versatile Applications:

Ideal for agriculture irrigation, livestock watering, and rural water supply projects, providing a sustainable solution for off-grid water needs.

Fully Customizable:

Options for pump size, flow rate, voltage, and branding – perfect for private label or tailored solutions to suit your specific project requirements.

● Permanent magnet DC brush less synchronous motor: the efficiency is improved by 15- 20%

● Oil filled motors for reliability and to avoid oil contamination

● Alloy mechanical seal ,longer working life and high reliability

● NSK Angular Contact Bearing

Controller Details

- MPPT: Maximum Power Point Tracking

- Running Speed Control: stepless speed regulation

- Timing function: Set pump running time

- Over current protection: Motor stops automatically when stucked

- Soft starting protection:Protect the motor & bearing

- Lack of water protection: Restart Automatically upon the Water Level

- Low-voltage / Over-voltage protection: Protect the motor & controller

- Reverse voltage protection: Circuit breaking automatically when reverse connection

- Short-circuit protection: Automatically stops when Short wiring of motor

Test Report

S4SS1.7-70-48-500D

S4SS2.0-95-96-750D

S4SS2.0-110-110-1100D

S4SS2.2-150-110-1300D

S4SS2.0-110-150-1100D

S4SS2.2-150-180-1300D

Packaging Information

Package Include: Additional materials need to be prepared:

● 1 x 4 inch DC solar screw pump with one 2m cable

● 1 x Pump controler with MPPT function

● 1 x Stainless steel float swith (sensor for tank)

● 1 x Pump outlet joint connector

● 1 x Splice kit for cable join

● 1 x Splice kit for waterproof

● Suitable solar panels. Refer to the suggestions provided in the instruction book.

● Motor power cable (2 wires plus earth). We recommend using a cable that is at least thicker than the original cable in the pump.

● PV cable (for connecting solar panels to the controller).

● Poly pipe from the pump to the water tank. We recommend using a poly pipe with a diameter of 1 inch or more.

● A stainless steel wire (referred to as a safety cable) to secure the pump in the bore. If pumping water from a dam or river, a float setup is required.

Packaged Data

No.	Item	Length （CM）	Width （CM）	Height （CM）	Volume （M³）	Weight （KG）	Packaging materials
A	S4SS1.7-70-48-500D	76	25	15	0.029	12.5	Wooden Case
B	S4SS2.0-95-96-750D	79	25	15	0.029625	13	Wooden Case
C	S4SS2.0-110-110-1100D	79	25	15	0.029625	13.5	Wooden Case
D	S4SS2.2-150-110-1300D	79	25	15	0.029625	13.5	Wooden Case
E	S4SS2.0-110-150-1100D	79	25	15	0.029625	13.5	Wooden Case
F	S4SS2.2-150-180-1300D	79	25	15	0.029625	13.5	Wooden Case

S4SS-4 Inch DC screw type solar bore pump Solar Pump with MPPT Controller for Bulk Orders and OEM/ODM

Trusted Manufacturer:

High Efficiency & Innovation:

Versatile Applications:

Fully Customizable:

About Us

Products

Solution

Service

No.	Model	Controller Voc	Solar Panel Connection
A	S4SS1.7-70-48-500D	SSL-4S48-110VOC
B	S4SS2.0-95-96-750D	SSL-4S96-220VOC
C	S4SS2.0-110-110-1100D	SSL-4S11-220VOC
D	S4SS2.2-150-110-1300D	SSL-4S11-220VOC
E	S4SS2.0-110-150-1100D	SSL-4S15-430VOC
F	S4SS2.2-150-180-1300D	SSL-4S20-430VOC
